Glass Lifter Sucker

H Type Glass Lifter Sucker with Electrical Tilting and Manual Rotating-877
H Type Glass Lifter Sucker with Electrical Tilting and Manual Rotating-880
H Type Glass Lifter Sucker with Electrical Tilting and Manual Rotating-878
H Type Glass Lifter Sucker with Electrical Tilting and Manual Rotating-879

H Type Glass Lifter Sucker with Electrical Tilting and Manual Rotating

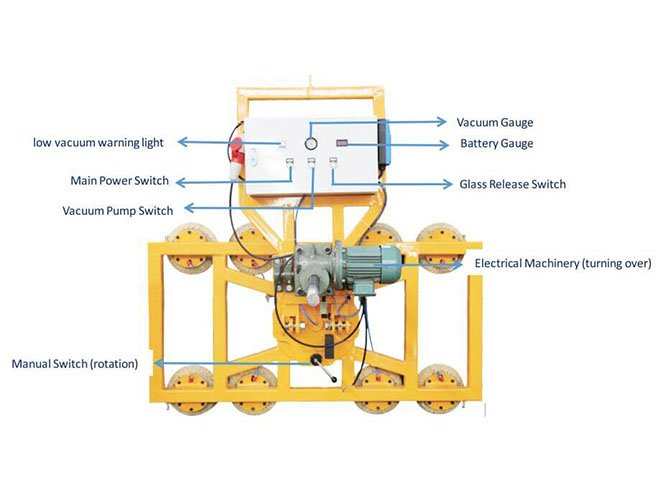

The max loading capacity for this kind sucker is higher with vacuum pump, ups to 1300kgs. Through electric tilting, the sucker can turn over 90°, and the rotation angle reach 360°by hand. The lifter is equipped with barometer, could protect against low air pressure ups to 15 minutes. The warning light and buzzer can warn the workers to take emergency action once there us power failure or vacuum leakage. This lifter sucker is suitable for moving of big size glass.

Share:

Product Details

Parameters


Quantity of Sucker

8&10&12(Customized)

Loading Capacity

800~1300KGS

Operating Voltage

DV48V / AC380V (Optional)

Battery Working Life

15~20hours

Rotation Angle

Manual Rotation 360°

Tilting Angle

Electric 90°

Air Supply

Electric Vacuum Pump Compressed Air 6pa~8pa

Safety Protection

Power off protection for 15minutes without glass falling off

Optical and acoustic signal warning against power failure or vacuum leakage
