Wheels For Double Edging Machine

Full Segmented Resin Wheel-562
Full Segmented Resin Wheel-565
Full Segmented Resin Wheel-564
Full Segmented Resin Wheel-563

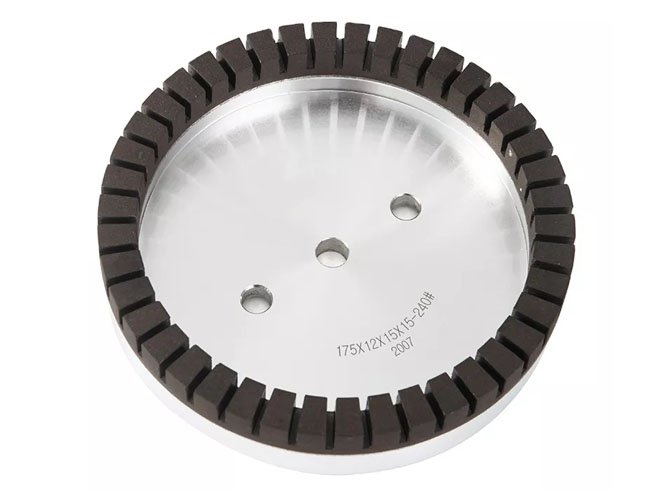

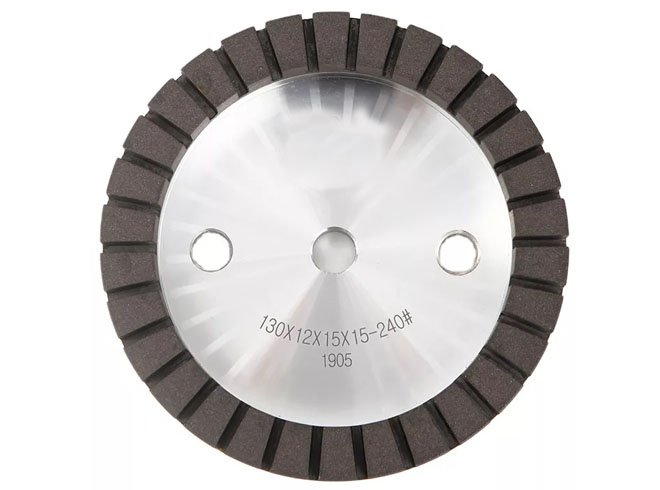

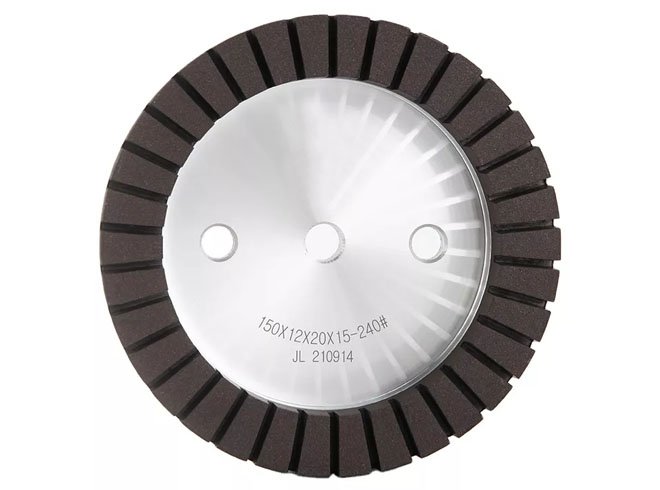

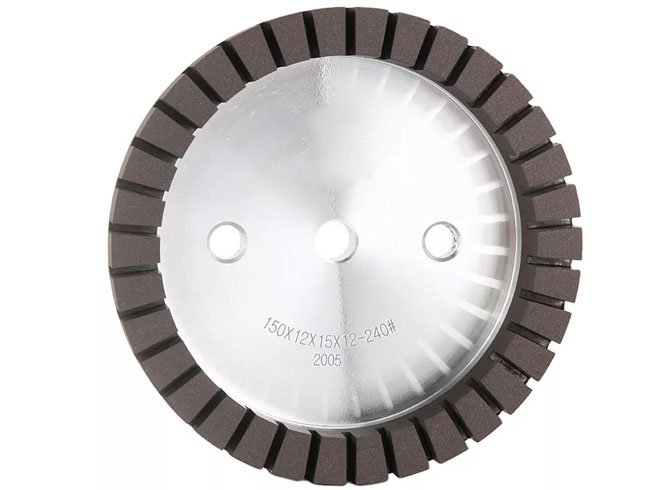

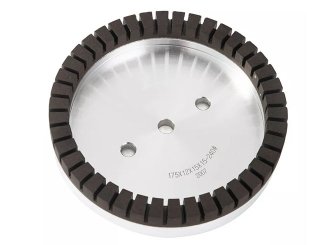

Full Segmented Resin Wheel

The full segmented resin wheel is made of high quality resin binder and diamond powder, mainly used for rough grinding and fine grinding.

The dentiform working layer can provide space for the drainage chip, to reduce the temperature on the glass surface, then could protect the glass workpiece against burning and exploding.

The resin wheel have good self-sharpening. During the grinding process, the grinding edge will be re-exposed, and the consumption is slow, could maintain ling service life.

The resin wheel have a certain elasticity, could improve the glass surface roughness, have a good grinding effect, maintain good shape of the glass workpiece.

Share:

Product Details

Parameters

Diameter

Φ200,Φ175 ,Φ150,Φ130

Hole Size

12,22,25,50

Working Rim Size

10×12,15×12,20×15

Granularity

60#~320#

Raw Materials

High Quality Diamond and Resin Binder
