Glass Lifter Sucker

Column Lifter Crane-835
Column Lifter Crane-838
Column Lifter Crane-836
Column Lifter Crane-837

Column Lifter Crane

The column lifter crane is divided into movable type and fixed type. For the movable type, it is equipped with wheels and brake, can work at the required position. For the fixed type, the column with movable hoist or sucker lifter could be fixed on the ground, or fixed on the wall, or fixed on the universal beam in the workshop. All types are suit for operation between different workshop stations.


Share:

Product Details

Parameters

Item

Movable Type

Column Type

Wall Type

Steel Type

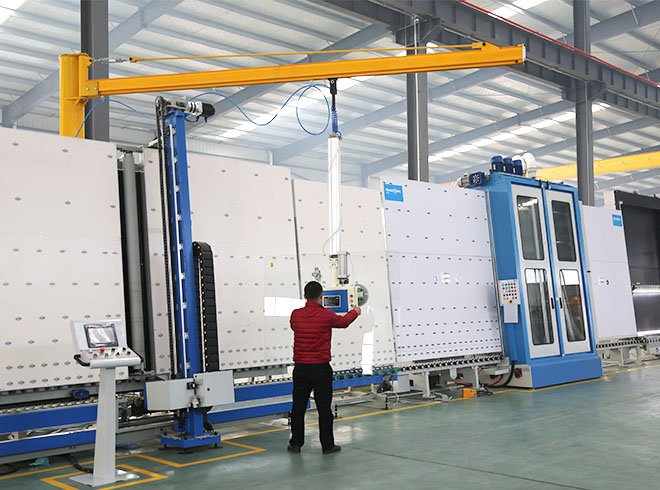

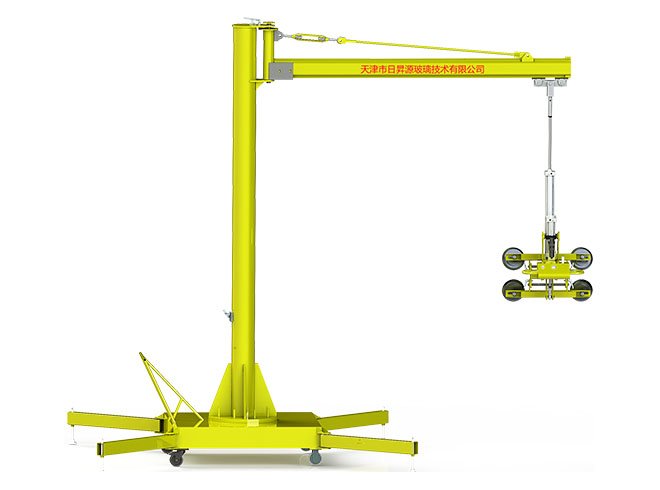

Movable Column Lifter Sucker

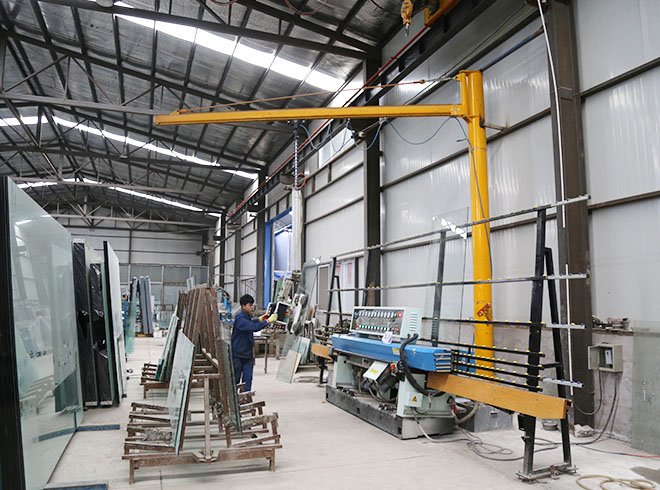

Lifter Crane Fixed on the Ground

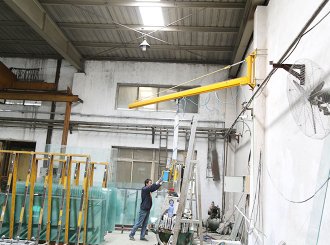

Lifter Crane Fixed on the Wall

Lifter Crane Fixed on Universal Beam

Pictures

图片一

图片二

图片三

图片四

Height of Column

4100mm or Customized

4350mm or Customized

According Requirement

According Requirement

Arm Length

3000mm~6000mm

3000mm~6000mm

3000mm~6000mm

3000mm~6000mm

Operation Angle

270°or 360°

270°or 360°

270°or 360°

270°or 360°

Driving Force

Manual or Electrical

Manual or Electrical

Manual or Electrical

Manual or Electrical

Max Loading Capacity

200KGS

500KGS

500KGS

500KGS
