Glass Lifter Sucker

Flying Arm Suction Cup-846

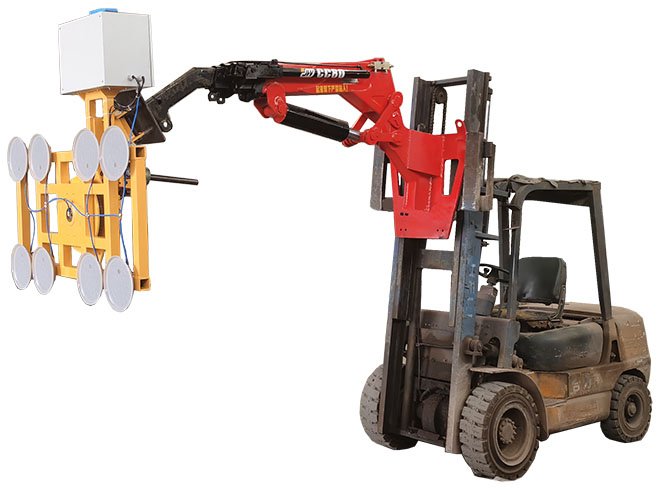

Flying Arm Suction Cup

The equipment with two hydraulic telescopic arms and one manual jib, the length reaches 5200mm, can be equipped with electric glass lifter with tilting and rotation functions. The battery capacity is 48AH, max loading capacity ups to 2500KGS. The operation is maneuverable and convenient, suitable for the outdoor glass installation.


Share:

Product Details

Parameter

Max Lifting Moment of Force(KN.M)

50

Max Lifting Capacity(KG)

2500

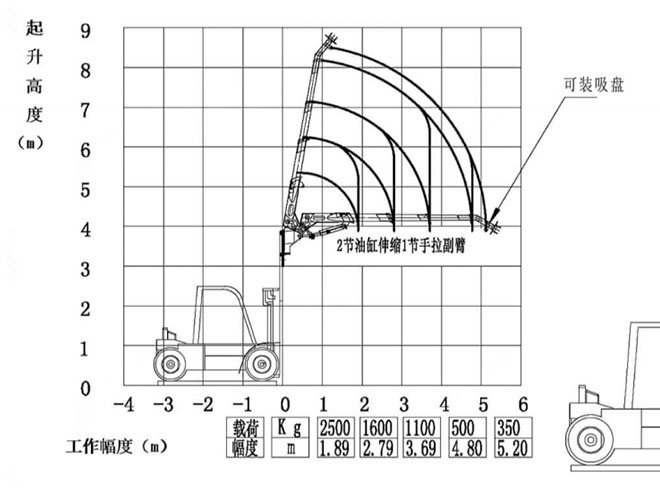

Max Working Range(mm)

5200

Max Lifting Height(mm)

8500(3m length forklift truck door frame)

10000(4.5m length forklift truck door frame)

Operational Voltage(Mpa)

20

Rated Flow(L/min)

40

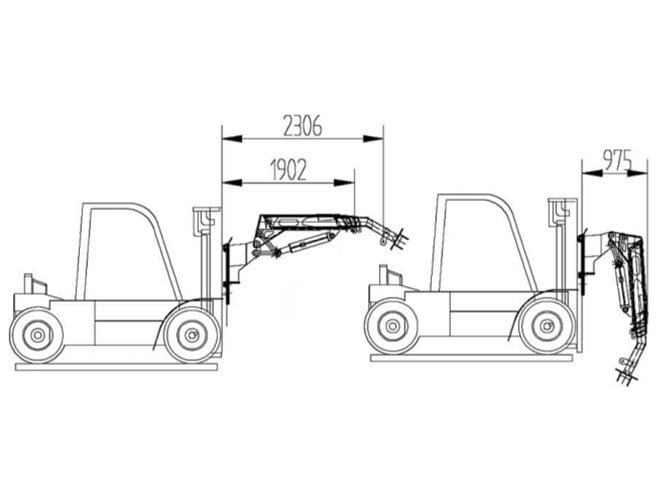

Min Working Range

1902

Weight of Crane

500KGS

Suitable Forklift Truck

3T,5T,7T
